HYMER CAMPER VAN Backrack+ Bike Carrier Swing

PRICE: £3120.00 INC VAT. PLEASE MAKE AN ENQUIRY TO PURCHASE THIS ITEM.

PLEASE NOTE: This item can only be fitted on the left hand door only and will need the light bar to be fitted in conjunction with the bike swing.

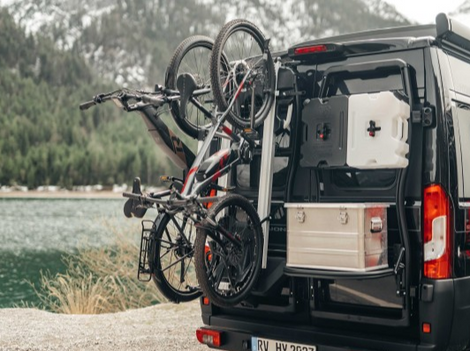

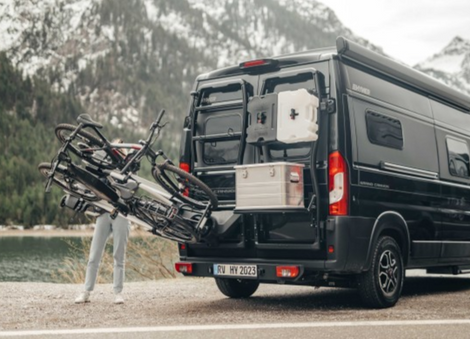

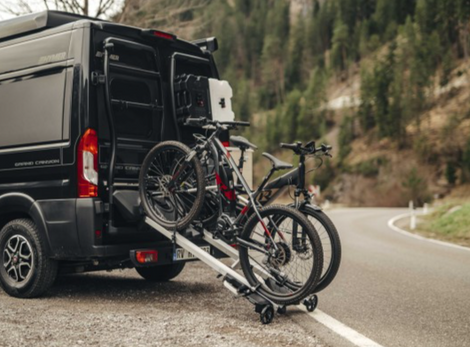

The Bike Carrier Swing is ideal for transporting 2 bikes (or e-bikes). The bikes are simply pushed onto the carrier. The carrier and bikes can then be swung upwards with minimal effort.

Technical data:
- Dead weight 31,2 kg
- Load capacity 50 kg
- Swivel arm with low actuating force (approx. 10 kg)
- Can only be mounted on left-hand door
- Usable up to 3" tire width and 26-29 inch wheels (24 inch with wheelbase 950mm and 29 inch with wheelbase 1300mm)

Package contents:
- Bike Carrier Swing

Requires:
- Backrack+
- Number and Light Bar
- Retrofit fit electric preparation part number 8502045 (Fiat Ducato series 7)
or part number 8502160 (Fiat Ducato Serie 8 and Fiat Ducato series 9)

Suitable for the following vehicles:

Grand Canyon 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025

Rio 2014, 2015, 2016

Serengeti 2014, 2015, 2016

Yellowstone 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025

Sierra Nevada 2015, 2016, 2017, 2018

Ayers Rock 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025

Yosemite 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025

Free 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025

Grand Canyon Classic 2018

Ayers Rock Classic 2018
